Applying Generative AI to Textbook Summarization in an Assistive Technology Setting

0
379

Abstract

Computer vision has been used in the past to make text-based resources and scene text more accessible to the visually impaired. Readily available solutions don’t presently exist for students who don’t have access to textbooks in Braille, thus constraining their studies. This paper aims to establish how computer vision and Artificial Intelligence (AI) can be harnessed to make print resources, such as textbooks, more accessible to visually impaired students, by proposing a solution that involves the use of a vision-language model (VLM) to extract text from textbook pages, when images of them are clicked. This paper consists of a literature review and an analysis of the accuracy of vision-language models in detecting text from textbook pages. The outcomes of this paper will help develop solutions that can be implemented in smaller schools and homes for blind students, to aid in the process of their education, using Claude, the VLM that performed better in the experiment conducted. This paper aims to find viable, accessible solutions to replace a sighted individual, and provide for a more independent study process for students with disabilities.

Introduction

Background and Context

Visually-impaired students in smaller towns and cities, that don’t have access to facilities, training and resources to adapt to the mainstream methods of teaching, are cut off from a world of possibilities, due to their disability. Research in the past has been directed towards finding assistive technology for the visually impaired, that caters to more general scenarios. More specifically, in the field of computer vision, it has been to recognize characters in more widely circulated print-based resources, such as newspapers1 or books in a library2, and in signs and other scene text345. OCR (Optical Character Recognition)(see Glossary) was used to convert more than 16 million newspaper pages to a digital form for Chronicling America1. It used a fine-tuned Faster-RCNN (Region-based Convolutional Neural Network)(see Glossary) model and was initially tested on “World War 1-era Chronicling America pages.”

One solution – Adaptive Text Region Representation3 – proposes a two-step process: “text proposal” and “proposal refinement”. In the first step, a Text-RPN (Region Proposal Network which proposes all identifiable objects within the boundaries of an image6 generates a text proposal, given the input image. The proposal is refined through a “refinement network”. At the same time, “text/non-text classification, bounding box regression and RNN (Recurrent Neural Network) based adaptive text region representation” are used to classify the contents of the image as text or non-text. The final output is the text regions labeled with polygons with an adaptive number of vertices to accurately demarcate the text area3. Another solution4 proposes a unified text detection system. “It integrates the traditional false character candidate removal, text line extraction, and text line verification into a single process” making it an efficient model to detect text. It employs a similar character detection system as used in other proposed solutions7, which proposes a solution to read and detect text in natural scenes. It uses OCR to text regions returned by AdaBoost (an algorithm that combines weak image features to make stronger ones) and is followed by the Extension and Binarization stage which detects text regions which are then inputs to the OCR reading stage.

Artificial Intelligence (AI) models have been used for Natural Language Processing (see Glossary), predictions and for forecasts8. Generative AI, in specific, has been used to create multimodal results, including text, images, videos, designs, etc.9

OCR and similar technologies have been used to detect text in already computerized files like PDF files. But the same cannot be employed for images of textbooks that have dense text and visualizations and that might not be captured in the best lighting conditions and from the best angle. Solutions like Rosetta, employ OCR to recognize text in images. Written by employees at Facebook Inc., this solution was implemented to extract text on a Facebook scale10. There are solutions that have been created to counter the drawbacks of using OCR. For example, constructing and evaluating two systems. The first, a two-stage pipeline consisting of text detection followed by a leading OCR engine. The second is a system based on generic object recognition11. An arbitrary orientation network (AON) provides a solution to this. It can capture features of irregular texts. Its architecture “consists of four components: 1) the basal convolutional neural network (BCNN) module for low-level visual representation; 2) the arbitrary orientation network (AON) for capturing the horizontal, vertical and character placement features; 3) the filter gate (FG) for combining four feature sequences with the character placement clues; 4) the attention-based decoder (Decoder) for predicting character sequence.” The solution was tested on several regular and irregular datasets including but not limited to CUTE80, ICDAR 2015 and IIIT5K-Words12.

The traditional methods, using OCR, or a variant of it, AON, etc., have the downside of not being accessible. Newer solutions include employing deep learning to get around the challenges caused due to backgrounds, varying text, in style, orientation and lighting, and other similar reasons. Deep learning provides a solution using “image classification”, “object detection”, “semantic segmentation” and “sequence modeling”13.

Recent studies have explored the use of multimodal AI, tactile learning tools, and audio-based aids to support visually impaired students. AI-powered audio learning platforms14, automated tactile graphic generation systems15, and hybrid audio-tactile interfaces16 are among the emerging solutions that go beyond traditional OCR methods. These advancements offer important context for this study, which seeks to evaluate vision-language models as accessible educational tools.

VLMs (see Glossary) like ChatGPT, Gemini and Claude now accept text as well as images as input. Being available publicly and for free, these make these more preferable solutions in comparison to the solutions used earlier.

Problem Statement and Rationale

Textbooks are dense, with visualizations and images wrapping the text. The dense nature of the text and visualizations in textbooks makes it difficult to readily convert to text, which can in turn be converted to an audio format. This makes it difficult for visually impaired students to use regular textbooks on a day-to-day basis.

I have been working with visually impaired students, in a more rural part of my city, for a year now, to help them learn to play the piano. From my observations, and after talking to their caregivers, I have come to realize that they do not have a viable solution in place to solve this problem. The reason for their lack of access to more resources, like textbooks in Braille, is due to their lack of financial resources and infrastructure. They presently have someone sit with the students when they study, to read out the contents of their textbooks to them. This is not a feasible solution in the long term and constrains their studies.

Significance and Purpose

Textbooks have the benefit of explaining concepts in great detail, as opposed to presentations or slides. This makes them highly valuable to students. The uniqueness of every subject’s textbook poses an additional challenge to the possibilities students have to learn. Providing a reliable AI-based alternative that can interpret and read out dense textbook content would make education significantly more accessible to visually impaired students, especially those in under-resourced areas.

Objectives

This experiment aims to determine which VLM is better suited to replace the individual these students now require to study. Integrating the better of these models into a mobile app would reduce the dependency of these students on other individuals for their studies.

Scope and Limitations

The study focuses specifically on high school-level textbook content and compares two publicly available generative AI VLMs—GPT-4o and Claude 3.5 Sonnet. A majority of the dataset consists of images from high school textbooks due to a lack of access to textbooks of other grade levels. Limitations include the scope of model evaluation, the size of the dataset and the variability in textbook layouts, languages, grade levels and image quality.

Theoretical Framework

This work draws on the ongoing development and evaluation of computer vision and multimodal generative AI systems. It operates under the assumption that newer models like VLMs have surpassed traditional OCR in both flexibility and accessibility, making them viable for real-time educational support applications.

Methodology Overview

Hence, we ran a proof of concept experiment to compare two publicly available generative AI models – GPT-4o and Claude 3.5 Sonnet. Both these models are VLMs, which are different from LLMs (Large Language Model)(see Glossary) in the sense that they are multimodal models, taking images, and other forms of input in addition to text, and return outputs of different types as well. Both models used in this experiment accept both text and images as input. Their performance was assessed based on accuracy, time taken, and qualitative analysis of their outputs.

Proof of Concept Experiment

Introduction

Generative AI has been used in various fields due to its ability to process huge amounts of data and assist with several tasks. This technology has not been applied in the field of education, as of now. The text in textbooks varies across pages, with images, illustrations and tables scattered throughout the text. The dense nature of the text makes it more difficult to detect the text in it. To better understand how feasible it is to use AI on a day-to-day basis to detect text from textbook pages, I compared different AI models and evaluated their performance in detecting and understanding text, graphics and images, and in summarizing the same for a student.

The models selected for this experiment are GPT-4o and Claude 3.5 Sonnet. The reason for choosing these models is that they are readily accessible. This makes them preferred because students are more likely to be able to use these frontend models.

Both of these models are VLMs, taking both images and text as input for processing. Whereas, LLMs specialize in dealing mostly with text.

OpenAI’s GPT-4o was released as its flagship model. Presently, it stands at No. 1 on the LMSYS leaderboard17. It has been shown to surpass previous models in its accuracy with both audio and visual inputs18. Figure 1 shows the comparisons between GPT-4o and other similar models on various benchmarks.

Figure 1:  Adapted18

Claude 3.5 Sonnet is Anthropic’s strongest vision model yet, surpassing benchmarks set by previous Anthropic models.19

GPT-4o has a context window (see Glossary) of 128,000 tokens20. Claude 3.5, on the other hand, has a context window of 200, 000 tokens.21

The LMSYS Leaderboard is a result of crowdsourced evals on LLMs17 It is a platform on which users can vote anonymously, and can choose between two anonymous chatbots. This makes sure the votes are unbiased. It uses LLM benchmarks, the Elo ranking system, and a human preference dataset. It uses the Bradley-Terry model for pairwise evaluations of models, to arrive at the final ranking.

The comparison carried out in this proof of concept experiment was between OpenAI’s GPT-4o and Anthropic’s Claude 3.5. According to the LMSYS leaderboard, the latest version of GPT-4o ranks 1st, with an arena score of 1277, while Claude 3.5 Sonnet ranks 6th14.

A VLM leaderboard (OpenVLM Leaderboard), uses the results of the OpenSource Framework to rank VLMs21. According to this leaderboard, the latest version of GPT-4o ranks 1st, while Claude 3.5 Sonnet ranks 6th.

The MMMU benchmark22 assesses the multimodal models on topics involving in-depth subject knowledge and reasoning. GPT-4o has set an MMMU benchmark of 69.1%22 and Claude 3.5 Sonnet has a score of 68.319.

Considering that this experiment deals with both the recognition of text from images, as well as summarizing it, it is ideal to compare these two VLMs, to determine which serves this specific purpose better, both quality-wise and time-wise.

Data

I created my own dataset for this experiment. The dataset consisted of 50 images of various textbooks – science, social science and language learning – to ensure variation in the kind of data on each page. The approximate composition of the dataset was as follows: 37.5% Science, 37.5% Computer Science, 17.5% History and 17.5% Geography. The images were taken in different orientations, from different angles and in varied lighting conditions (around 55% in controlled indoor lighting and 45% in natural daylight) to ensure that the test is accurate. The images were taken using the 48 megapixel camera of a mobile phone, to resemble how students would take similar images.

Methods

Two VLMs – GPT-4o and Claude 3.5 Sonnet – were used to detect text, produce summaries, and then to compare the two summaries produced to arrive at the best one.

An auto-evaluation was conducted in a new window of GPT-4o to ensure that there is no bias in the evaluation. (see Glossary) This was done to make for a more viable solution in the case of the usage of this solution in an app. Auto-evaluations have been used in the past to replace human evaluations, and to avoid bias.23)

Comparison

Prompts to the VLM

  1. Text Recognition: Detect all text on the page in the image. Summarize diagrams or illustrations, if any. Do not summarize the text, return all of it. (along with the image)
  2. Summary Generation: Generate a 150-word summary of the text on the page while adhering to the following:
    1. Every heading in the image is covered in the summary.
    2. Sections are described with no key terms left out.
    3. Illustrations are described.

4. If the textbook is a mathematics textbook, include all formulae in the summary.

5. If it is a science textbook, ensure that summaries of the details depicted in diagrams and equations/formulae are mentioned.

6. If it is a history/geography/language learning textbook, ensure all headings are covered with description.

  1. Auto-evaluation: Compare <1st summary> with <2nd summary>, and determine which one is better on the basis of the following criteria.

1. The summary encompasses every concept on the page. 2. Images and illustrations on the page are detected and described. 3. The summary gives a clear understanding of the topics on the page.

After passing the image to the VLM, and retrieving the text it returned, I conducted a manual check on the text and evaluated it. I read through the text to check the following:

  1. If any text was left out.
  2. If any text was incorrectly detected.
  3. If images and other visualizations – diagrams, mind maps, tables – were detected correctly.
  4. If the images in the textbook were recognized and described correctly, or to check how close its recognition of the image was to what the image depicted.
Image NoTime TakenAuto-eval (Better summary)Human Eval (Better summary)Final Result
 GPT-4o (X)Claude-3.5 Sonnet (Y)
1(Science)24.74s17.26sYYY
231.38s23.65sYYY
347.43s19.05sYYY
444.01s25.00sYYY
552.16s15.11sYYY
61m 10.81s22.91sYXX
71m 11.26s10.88sYYY
81m 13.75s25.53s(figure captions recognized incorrectly)YXX
918.79s22.10sYYY
1023.67s15.32sYYY
1114.02s29.13sYYY
1217.45s21.34sYYY
1313.89s23.89sYYY
1417.22s (Reactions undetected)19.87sYYY
1526.43s15.73sYYY
16 (CS)29.24s22.16sYYY
1730.73s23.38sXXX
1830.63s23.70sYYY
1937.43s28.30sYYY
2037.85s23.15s (text incorrectly detected)XXX
2123.03s24.67sYYY
2216.11s17.38sYYY
2320.49s17.92sYYY
2422.17s15.63sYYY
2513.64s19.78sYYY
2615.61s13.46sYXX
2714.32s11.47sYYY
2814.46s16.71sYYY
2915.56s13.82sYYY
3017.40s26.24sYYY
31(History)1m 13.60s25.70sYXX
3259.12s19.72sYYY
3347.68s22.36sYYY
3450.32s20.60sYYY
3539.48s11.04sYYY
3643.81s15.61sYYY
3751.09s13.05sYYY
38 (Geography)33.74s27.22sYYY
3929.07s26.90sYYY
4027.83s22.88sYYY
Table 1: Comparison of GPT-4o and Claude 3.5 Sonnet on Text and Image Summarization Tasks

As shown in Table 1, Claude 3.5 Sonnet outperformed GPT-4o in 85% of test cases.

The model was then asked to create a summary and compare it with the summary generated by the second model on the basis of the following rubrics:

  1. Every heading in the image is covered in the summary.
  2.  Sections are described with no key terms left out.

The quality of the generated summary is evaluated manually on the basis of the breadth and detail of the text on the textbook page.

The same cycle was repeated for every image in the data set.

The purpose of the auto-evaluation is to compare the summaries generated by the two models in an unbiased manner. Both models are given the same image, the same prompts and are asked to generate summaries. Both summaries are passed to both models and they are asked to compare the two on the basis of the criteria mentioned below. The results of the auto-evaluation are then compared to those of a human evaluation, to check if the summaries provide complete understanding of the contents of the page.

In addition to the auto-evaluation, the summaries were also evaluated by visually impaired children to assess real-world accessibility and effectiveness; the results of their feedback are summarized below.

Subject | CriteriaClarityReadabilityInformativeness
ScienceGPT-4o434
Claude 3.5 Sonnet44
Computer ScienceGPT-4o3.343.66
Claude 3.5 Sonnet3.66 (one grammatical error)4.66
HistoryGPT-4o44.54 (images described well)
Claude 3.5 Sonnet55(dates, names of people added to description; descriptive)
GeographyGPT-4o445
Claude 3.5 Sonnet45
Table 2: Results of User-testing with Visually-impaired Students on Average

On average, while analysing the content itself, Claude 3.5 Sonnet performed better across subjects. However, an important consideration to make is that it does not have a “read aloud” feature as of now, whereas GPT-4o does. One solution would be to use a third party text-to-speech solution when integrating Claude 3.5 Sonnet into an app. Use of a Claude model in the future which does have this feature available would also solve this problem.

The errors noted in the text and graphics detection of the models has been summarised in the table below:

Error TypeExampleFrequency (%)
Misrecognized TextClaude misread figure captions (Image 8); text detection was faulty (Image 20)5%
Missing Visual InformationGPT-4o missed detecting reactions in a chemistry diagram (Image 14)2.5%
Table 3: Summary of the Errors Made by the VLMs

Results

Overall, as seen in Table 1,  Claude 3.5 Sonnet performed the task of detecting and summarizing the contents of a textbook page better. The text detection was performed better by GPT-4o, on average, and the summaries created by Claude 3.5 Sonnet were more comprehensive. Claude 3.5 Sonnet detected images and visualizations and described them more accurately.

Each conversion was timed, and averaged out to 35.155 seconds, per image, for GPT-4o and to 20.2405  seconds, per image, for Claude 3.5 Sonnet, making the latter significantly faster than the former.

Analysis

An analysis suggests that GPT-4o is about 1.7x faster than Claude-3.5 Sonnet and has a lower latency24. However, the results of the above experiment show otherwise. This could be due to high traffic when the experiment was run. However, this requires further investigation.

On conducting a t-Test, a statistical test to compare if the difference in the means of two groups are significant, or might have happened by chance (see Glossary)25 on the paired values, it is evident that Claude 3.5 Sonnet significantly outperformed GPT-4o.

t = \frac{\bar{d}}{s / \sqrt{n}}

Where:
t = \text{t-value},
\bar{d} = \text{mean of the differences between readings} = 13.29\ \text{s},
s = \text{standard deviation of the differences} = 18.63\ \text{s},
n = \text{number of readings} = 40.

Further, on conduction a two-tailed test (see Glossary)26 with code to find the p-value, the following is obtained.

from scipy import stats
t_stat = 4.51
df = 39
p_value = stats.t.sf(t_stat, df) * 2

Where, df refers to the degrees of freedom which is n – 1. On calculating, p = 0.000057, which implies that the observed difference in processing times between GPT-4o and Claude 3.5 Sonnet is highly statistically significant (meaning the probability of this difference having occurred by chance is 0.000057%). This means it is extremely unlikely that the difference occurred by chance, providing strong evidence that Claude 3.5 Sonnet processes the provided images faster than GPT-4o.

Cohen’s d is a value that quantifies the largeness of the difference of the means between two groups in standard deviation units, here, in terms of the performance of both models.27 On calculating Cohen’s d,

dc = \frac{M_{1} - M_{2}}{sd}

dc = \frac{M_{1} - M_{2}}{sd}

Where:
M_{1} = \text{mean of performance of GPT-4o},
M_{2} = \text{mean of performance of Claude 3.5 Sonnet},
\text{Standard deviation } sd = \sqrt{p(1-p)}

Where:
p = \frac{34}{40} = 0.85

Therefore, sd = 0.357.

On considering all readings, GPT-4o performed better in 6 readings, resulting in a binary M_{1} value of 4/40 = 0.15, and Claude 3.5 Sonnet did better in 34, resulting in an M_{2} value of 85/40 = 0.85.

Therefore,

dc = \frac{0.15 - 0.85}{0.357} = -1.96

This is a very large negative value, indicating that GPT-4o performed significantly worse than Claude 3.5 Sonnet.

Below is a figure illustrating the accuracy and average processing time of both models in a bar graph for comparison.

Figure 2: Comparison of GPT-4o and Claude 3.5 Sonnet on accuracy and average time

Some other observations made during this experiment are that visualizations, including chemical reactions, were incorrectly detected, while formulae and equations were, for the most part, correctly detected. Claude 3.5 Sonnet did hallucinate, and return content that did not exist on the input page. All of these errors together resulted in an error percentage of 7.5%.

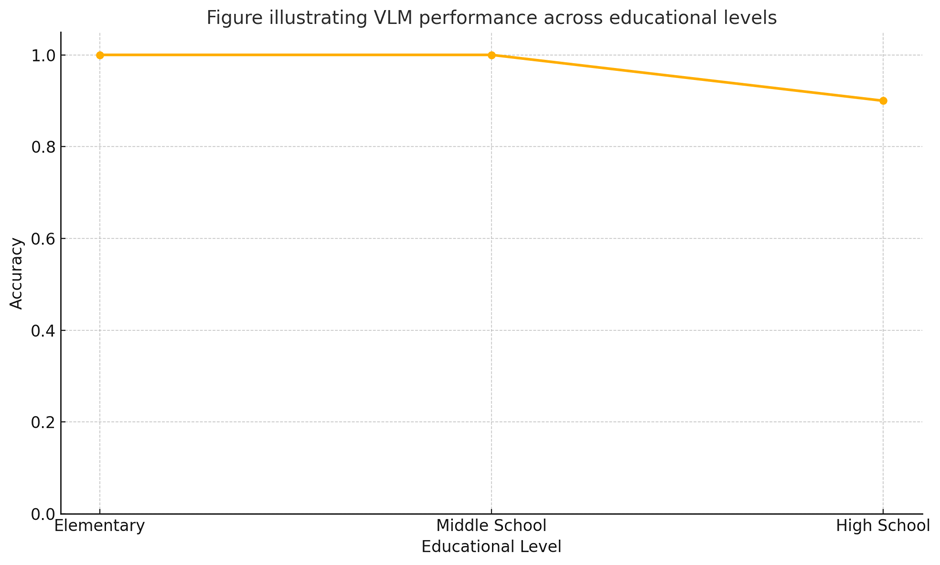

Here is a line graph showing the accuracy of the VLMs across grade levels. Due to the restricted size of the dataset, accuracy in elementary and middle school textbook images were 100%. However, on expanding the dataset, more cases with errors are bound to occur.

Figure 3: Figure illustrating VLM performance across educational levels

Another observation is that GPT-4o returned formulae in a better formatted way than Claude 3.5 Sonnet did.

A few limitations that were observed through the course of this experiment include:

  1. Claude 3.5 Sonnet did hallucinate, resulting in incorrect information, thus lowering the factuality of the output. This may be because it had read the text incorrectly.
    Another test that was conducted was to find high confidence sections for a given image input, to detect patterns in the regions of low confidence.

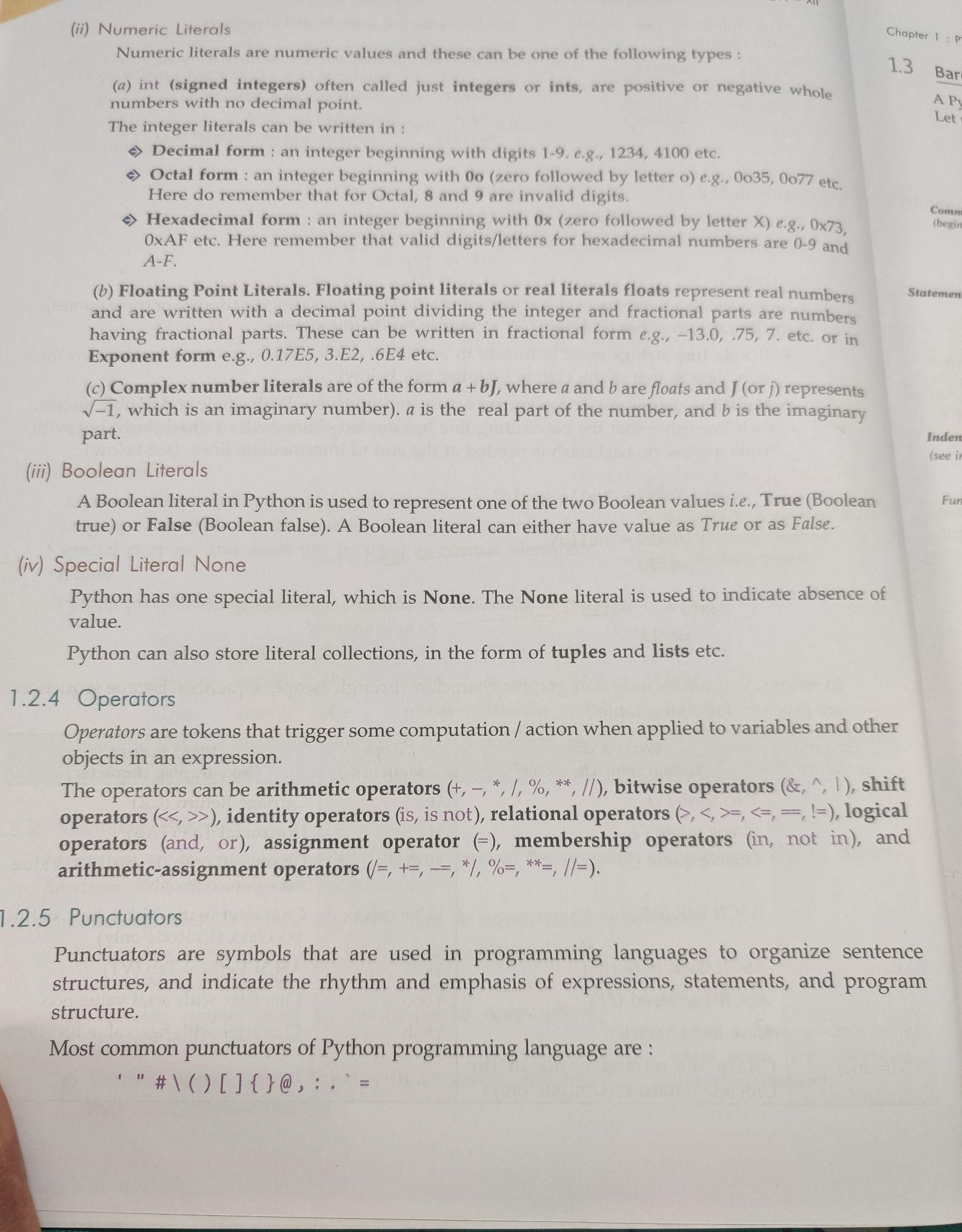

Figure 4: Image from a CS textbook

Prompt given to VLM: Give me the high confidence and low confidence regions (high confidence having probability > 0.7 and low confidence being < 0.7) on recognizing the text in the below image. Put it in a paragraph with the high confidence text in an ordinary font, and the low confidence parts in bold.

VLM response: (ii) Numeric Literals

Numeric literals are numeric values and these can be one of the following types:

(a) int (signed integers) often called just integers or ints, are positive or negative whole numbers with no decimal point. The integer literals can be written in:

⊕ Decimal form: an integer beginning with digits 1-9, e.g., 1234, 4100 etc. ⊕ Octal form: an integer beginning with 0x (zero followed by letter x) e.g. 0x8, 0x7 etc. Here we understand that the Octal, 8 and 9 are invalid digits/letters for hexadecimal numbers, so we get an error.

⊕ Hexadecimal form: an integer beginning with 0x (zero followed by letter x) e.g. 0x73, 0xA1 etc. Here we understand that the digits 0-9, letters A-F are valid digits/letters for hexadecimal numbers, so we get 0-15.

(b) Floating Point Literals. Floating point literals or real literals floats represent real numbers and are written with a decimal point dividing the integer and fractional parts are numbers. Having fractional parts. These can be written in fractional form e.g., -15.0, .75, 7. etc. or in Exponent form e.g., 0.1E2, 3.62, .614 etc.

(c) Complex number literals are of the form a + bj, where a and b are floats and j (or J) represents √-1, which is an imaginary number. a is the real part of the number, and b is the imaginary part.

On analysis, it is evident that the low-confidence parts are mainly the technical examples, mathematical symbols, and specific code notation where OCR might struggle with precision in detection. Future experiments could look into methods to describe the formulae in a way that is comprehensive for a listener, rather than a reader.

While VLMs do provide opportunities to improve accessibility,  there are also several ethical implications to consider. One important consideration is hallucination, when the model generates inaccurate information. In an educational setting, this is especially problematic as it can mislead or misinform students. Also, biases in the model’s training data can result in inconsistent performance across different languages, subjects or groups of people. To minimise the risk of users being misled by these problems, including confidence scores and grounding the model in the textbook data provided could help the models produce more accurate outputs.

The hallucination could potentially be corrected by engineering the prompt given to the model and by grounding the model in the data provided and the problem of the low confidence sections could be addressed through training the model, and fine tuning it to deal with more mathematical symbols

  1. Batching input images increases the latency of the model, as well as lowers its accuracy. This could be corrected by further experiments and research, looking at and targeting the specific causes for this occurrence.
  2. This experiment is that it solely focuses on testing the model’s capabilities in English, but expanding to other languages (Spanish, Mandarin, etc.) would expand the applicability of this model.
  3. This solution does require constant internet access to use the model.

Here is a table to compare the proposed solution with existing solutions:

Assistive ToolSpeedCostAccessibilityAccuracy
Claude 3.5 SonnetReal-timeFree of cost (internet required)High~92%
Braille TextbooksSlowHigh costModerate-low~100%
Human-read AudioModerateVariable costModerate~95% (mostly accurate)
Table 4: Comparative Evaluation of Assistive Tools Across Key Metrics

Conclusion

The results of the experiment show that Claude 3.5 Sonnet serves this specific use of generative AI better. The consistent accuracy of the model shows that it can in fact be used in the proposed solution, with further training and grounding, to further minimise errors in detection and hallucination. The integration of it into a mobile app would make employing this solution easier for visually impaired students.

Future work

Due to limitations in accessing textbooks in other languages, this study has been limited to English, but could be extended to other languages in the future. Additionally, this solution presently would not cater to students with textbooks in languages that the model does not recognize. This is another issue that would need to be addressed in future, to prevent the model from hallucinating when it is asked to process information in an unknown language.

The requirement of access to the internet constantly makes the solution less feasible for students in rural areas with limited, or no, access to high-speed internet. A solution to getting around this problem would be to conduct a larger-scale experiment on similar lines, to compare on-device VLMs including Nano 1.028, thus optimizing this solution for lower-infrastructure areas. These models do not require internet connection for use, due to their smaller size, thus making them a more viable choice. Their latency is also reduced, due to their smaller size. This makes these on-device VLMs perfect for comparison using an experimental structure similar to the one used in this paper, to determine which model performs better.

In the case of integrating into an app, a few factors that would have to be considered are: availability (cost-free access to VLM), availability across multiple languages, ability to return and accept audio files, safety in using the model, the factuality of the model, as well as locale of the user. To allow for offline usage, on-device VLMs, which are smaller in size, would be preferable.
Another important improvement to make would be to train the VLM on several varieties of text inputs, with various dense or graphic text areas in it.

One other limitation is the latency in both models, some of which exceed 15-20 seconds. In a real-world setting, these could be inconvenient to a student. One solution to fix this, is to avoid batching images, and to send images in one at a time, to reduce the load on the VLM. Also, in the future, on-device VLMs would work faster, due to their smaller size, and hence, lower latency.

Glossary:

  1. OCR: Optical Character Recognition. A technology used to convert images of text into machine-readable text.
  2. RCNN: Region-based Convolutional Neural Network. A type of deep learning model used to find and identify objects in an image by first proposing possible regions where the objects might be, and then analyzing those regions to classify what’s inside them.
  3. Natural Language Processing: A field of artificial intelligence that helps computers understand, interpret, and generate human language, so they can interact with us more naturally.
  4. VLM: Vision-Language Model. An AI model that can understand and work with both images and text together, allowing it to answer questions about pictures, describe images, or combine visual and written information in its responses.
  5. LLM: Large Language Model. An AI model trained on huge amounts of text so it can understand and generate human-like language, often used for answering questions, writing text, or holding conversations.
  6. Token context window: Token context window here refers to the amount of text (measured in tokens, which are chunks of words) a model can consider at once when generating responses. A larger context window means the model can understand and reference more information from the conversation or document at a time.
  7. Auto-evaluation: Auto-evaluation is an automated process where one model evaluates another model’s performance based on criteria like completeness and accuracy, without the need for human intervention.
  8. t-Test:  statistical test to compare if the difference in the means of two groups are significant, or might have happened by chance.
  9. Two-tailed test: A test used to find whether there is a significant difference between two groups from the mean on either side of it.

Appendix I: Dataset Samples

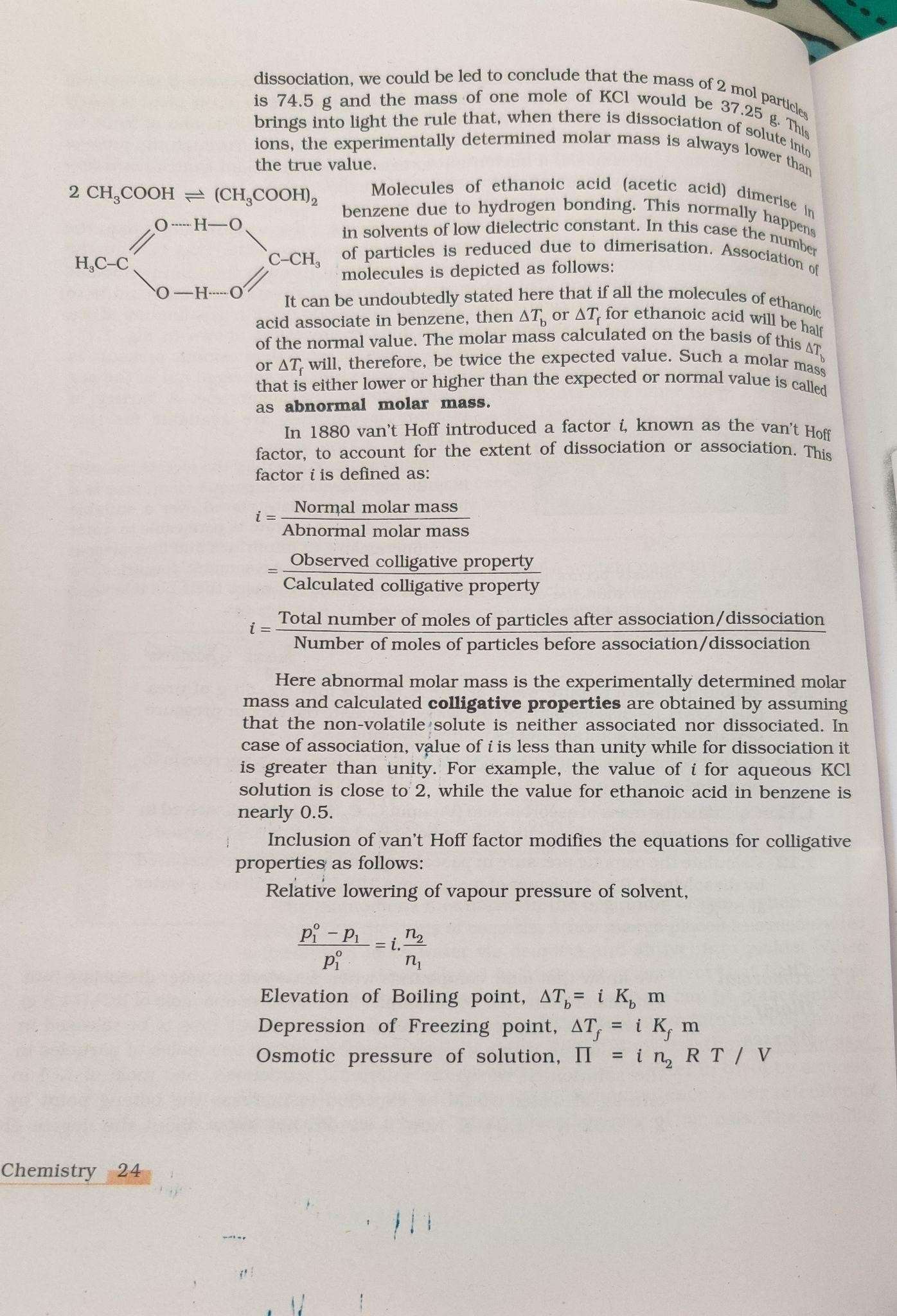

1. Science
2. Computer Science
3. History

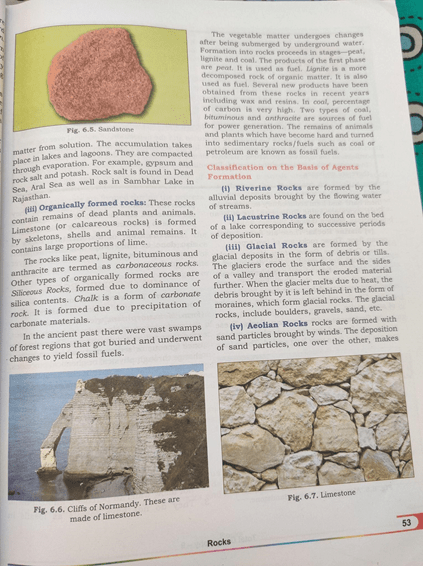

4. Geography

References

  1. B. C. G. Lee, J. Mears, E. Jakeway, M. Ferriter, C. Adams, N. Yarasavage, D. Thomas, K. Zwaard, D. Weld, The Newspaper Navigator Dataset: Extracting And Analyzing Visual Content from 16 Million Historic Newspaper Pages in Chronicling America (2020) []
  2. S. Mishra, Assistive Technologies for Visual Impairment Enhancing Access to Library Resources, Library Philosophy & Practice (2023) []
  3. X.  Wang , Y. Jiang , Z. Luo , C. Liu, H. Choi , S. Kim, Arbitrary Shape Scene Text Detection with Adaptive Text Region Representation (2019) [] [] []
  4. S. Tian, Y. Pan, C. Huang, S. Lu, K. Yu, and C. L. Tan, Text Flow: A Unified Text Detection System in Natural Scene Images (2015) [] []
  5. Z. Zhang, W. Shen, C. Yao, X. Bai, Symmetry-Based Text Line Detection in Natural Scenes (2015) []
  6. T. Karmakar, Region Proposal Network (RPN) — Backbone of Faster R-CNN https://medium.com/@codeplumber/region-proposal-network-rpn-backbone-of-faster-r-cnn-4a744a38d7f9 (2018) []
  7. X. Chen, A. L. Yuille, Detecting and Reading Text in Natural Scenes (2004) []
  8. What are AI models? https://www.hpe.com/in/en/what-is/ai-models.html#:~:text=AI%20models%20can%20be%20used,and%20robotics%20and%20control%20systems []
  9. Gartner Experts Answer the Top Generative AI Questions for Your Enterprise https://www.gartner.com/en/topics/generative-ai []
  10. F. Borisyuk, A. Gordo, V. Sivakumar, Rosetta: Large scale system for text detection and recognition in images (2018) []
  11. K. Wang, B. Babenko, S. Belongie, End-to-end scene text recognition (2011) []
  12. Z. Cheng, Y, Xu, F. Bai, Y. Niu, S. Pu, S. Zhou, AON: Towards Arbitrarily-Oriented Text Recognition (2018) []
  13. S. Long, X. He, C. Yao, Scene Text Detection and Recognition: The Deep Learning Era, International Journal of Computer Vision, 129, 161 – 184(2021) []
  14. Yang, C., & Taele, P., AI for Accessible Education: Personalized Audio-Based Learning for Blind Students. (2025) [] []
  15. Khan, A., et al., TactileNet: Bridging the Accessibility Gap with AI-Generated Tactile Graphics. (2025) []
  16. Michał Maćkowski, Piotr Brzoza, Accessible Tutoring Platform Using Audio-Tactile Graphics Adapted for Blind Users (2022) []
  17. LMSYS Chatbot Arena Leaderboard https://huggingface.co/spaces/lmsys/chatbot-arena-leaderboard (30th August 2024) [] []
  18. Hello GPT-4o https://openai.com/index/hello-gpt-4o/ (2024) [] []
  19. Claude 3.5 Sonnet, https://www.anthropic.com/news/claude-3-5-sonnet (2024) [] []
  20. Sean Michael Kerner, GPT-4o explained: Everything you need to know https://www.techtarget.com/whatis/feature/GPT-4o-explained-Everything-you-need-to-know (2024) []
  21. OpenVLM Leaderboard, https://huggingface.co/spaces/opencompass/open_vlm_leaderboard (30th August 2024) [] []
  22. MMMU, https://github.com/MMMU-Benchmark/MMMU [] []
  23. C. Lin, E. Hovy, Manual and Automatic Evaluation of Summaries (2002 []
  24. Hendrix, Claude 3.5 Sonnet vs. GPT 4o: which is better?, https://medium.com/@hendrix_56915/claude-3-5-sonnet-vs-gpt-4o-which-is-better-f4c4fe3a8f16#:~:text=In%20benchmark%20evaluations%2C%20Claude%203.5,math%2C%20and%20reasoning%20over%20text. (2024) []
  25. An Introduction to t Tests https://www.scribbr.com/statistics/t-test/#:~:text=What%20is%20a%20t%2Dtest,means%20is%20different%20from%20zero []
  26. What Is a Two-Tailed Test? Definition and Example https://www.investopedia.com/terms/t/two-tailed-test.asp []
  27. Cohen’s d https://en.wikiversity.org/wiki/Cohen%27s_d#:~:text=Cohen’s%20d%20is%20an%20effect,the%20comparison%20between%20two%20means []
  28. Nano 1.0 https://deepmind.google/models/gemini/nano/ []

LEAVE A REPLY

Please enter your comment!
Please enter your name here
